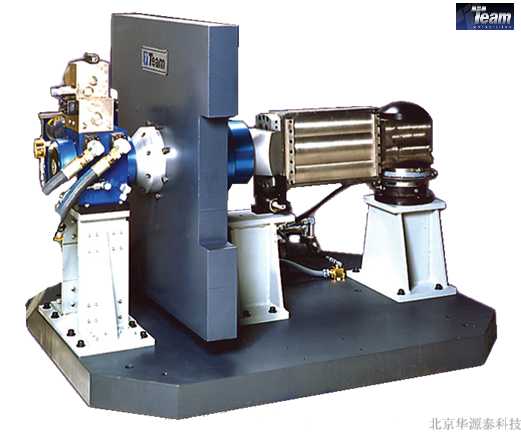

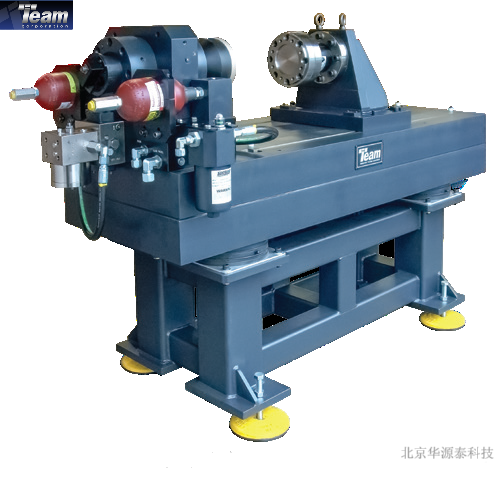

R-10 Series Rotary Actuators   R-10系列高频旋转执行器，摆动油缸

Overview 总览

Team Corporation's R-10 series are heavy-duty, robust, fatigue rated actuators that meets the requirements for many product applications in the automotive industry including coupling, damper, driveshaft axle and material testing. The R-10 series rotary actuators were designed for fatigue testing wherever high torque output with restricted rotational travel is required. The R-10 series has a total rotational travel of 100 degrees (+/- 50 degrees). One primary feature of the R-10 series is that they incorporate hydrostatic bearings, which eliminate mechanical wear caused by side or thrust loads - thus ensuring longer life.

Team Corporation的R-10系列是重型，坚固，耐用的执行器，可满足汽车行业许多产品应用的要求，包括联轴器，减震器，传动轴和材料测试。R-10系列旋转执行器设计用于需要高扭矩输出且旋转行程受限的疲劳测试。R-10系列的总旋转行程为100度（+/- 50度）。R-10系列的一个主要特点是它们装有静压轴承，从而消除了由侧向载荷或推力载荷引起的机械磨损，从而确保了更长的使用寿命。

Features 特征

• Dynamic Torque Output from 5,000 to 200,000 lb-in (564 - 22,596 N-m) 动态扭矩输出范围从5,000到200,000 lb-in（564 - 22,596 Nm）

• Heavy duty - fatigue rated 重型-疲劳等级

• Zero backlash due to locking taper 锁定锥度可实现零反冲

• Hydrostatic bearings eliminate mechanical wear and ensure longer life 静压轴承消除了机械磨损并确保了更长的使用寿命

• Rotational travel 100 degrees (+/- 50 degrees) 旋转行程100度（+/- 50度）

• Integrated RVDT 集成式RVDT

Applications应用领域

• Automotive damper testing 汽车减震器测试

• Automotive FEAD testing 汽车FEAD测试

• Automotive component test of axles, drive shafts & couplings 车轴，传动轴和联轴器等汽车部件测试

• All rotational or torque with limited displacement testing requirements 所有满足位移限制要求的旋转或扭矩测试

• Materials fatigue testing 材料疲劳测试
