Pad Bearings 滑动静压轴承

Overview 总览

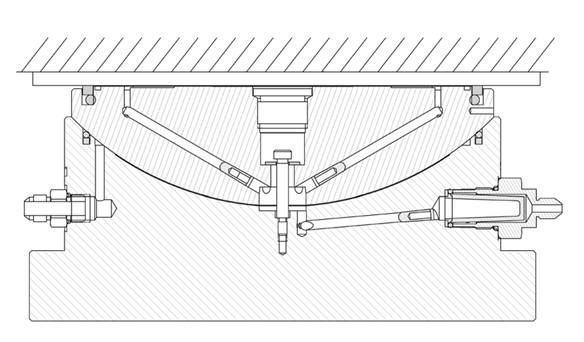

Team hydrostatic pad bearings are used to guide and restrain large packages during vibration testing. These unique bearings form a hydrostatic oil film between a working surface on the package or fixture, and the "pad" of the bearing surface interface. Team hydrostatic pad bearings are extremely stiff, providing the high level of restraint required to keep cross-axis motion to a minimum. When used in conjunction with a 3,000 psi (206 bar) oil supply, Team hydrostatic pad bearings are friction free and require almost no maintenance.

Specialty pad bearings with larger force ratings and greater angular rotations may be available depending upon your application requirements.

Team滑动静压垫轴承用于在振动测试期间引导和约束大型结构。这些独特的轴承在结构或固定装置工作表面上与轴承表面界面之间形成了像“垫”一样的静液压油膜。Team静压垫轴承**坚硬，可提供*高的约束力，可将横轴运动保持在*低水平。与3000 psi（206 bar）的供油量配合使用时，Team静压垫轴承是无摩擦的，几乎不需要维护。

根据您的应用需求，可以提供具有更大额定力和更大角度旋转的特种轴承。

Features 特征

• Two Hydrostatic Bearing Surfaces Each 两个静压轴承表面

• High Dynamic Load Support 高动态负载支持

• Self-Aligning 自对准

• High Moment Constraint   高力矩约束*

• Friction Free and Maintenance Free 免摩擦和免维护**

*When used in pairs and properly aligned 成对使用并正确对齐时

**When oil is maintained to ISO 15-13-10 Standard 当油保持在ISO 15-13-10标准时

Applications 应用领域

• Slip Tables 滑台

• Guided Head Expanders 引导式头部扩张器

• MAST Systems MAST系统
