HydraBall 液压球头

Overview 总览

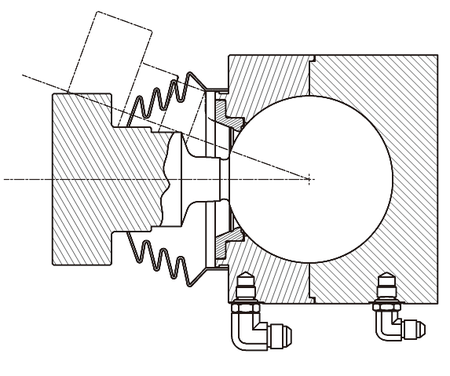

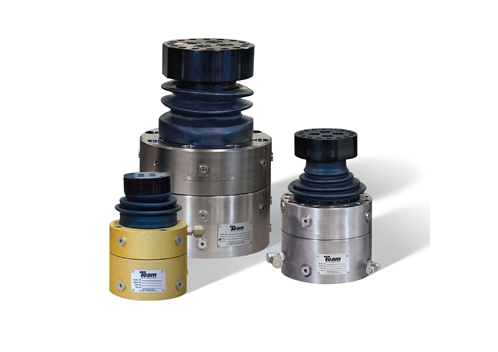

The Team Corporation HydraBall is a hydrostatic bearing, oil-supported ball joint with non-contacting surfaces. Using the HydraBall instead of conventional rod ends saves time and improves test results because no greasing or adjustment is required. The Hydraball provides a zero backlash, zero friction coupling that offers an extremely stiff direct load path. HydraBalls are a low-noise, cost-effective and virtually maintenance-free replacement to conventional rod ends.

The HydraBalls' smaller package and revolutionary design eliminates pin shear associated with typical clevis pin assemblies. There are no high-pressure seals to wear out or cause friction to compromise test results. The Team HydraBall requires only 0.2 gpm (.751 lpm) of oil at 3,000 psi (205 Bar).

Team Corporation 公司的HydraBall液压球头是油支撑球窝接头,具有非接触表面的静压轴承。使用HydraBall代替传统的杆端可以节省时间，并改善测试结果，因为不需要润滑或调整。Hydraball是零背隙，零摩擦球形联轴器，提供了非常坚硬的直接载荷路径。HydraBalls是一种低噪音，经济高效且几乎无需维护的,可替代传统杆端。

HydraBalls的较小封装和创新设计消除了与典型的U型夹销组件相关的销剪切。没有高压密封垫会磨损或引起摩擦而影响测试结果。HydraBall团队在3,000 psi（205 Bar）时仅需要0.2 gpm（.751 lpm）的油。

Features特征

• Direct Load Path 直接加载路径

• Eliminates Backlash 消除反冲

• Eliminates Friction 消除摩擦

• Easy to Install 易于安装

• Offers flexibility on Installation 提供安装灵活性

• Low Maintenance, Long Life Product 低维护，长寿命产品

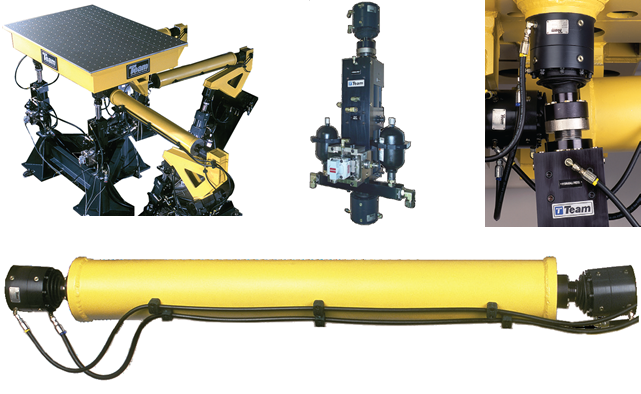

Applications应用领域

• MAST Tables MAST 台

• Load Frames 加载框架

• Multi Axis Systems 多轴系统
