LCS-48 Package Test System 包装测试系统

Overview 总览

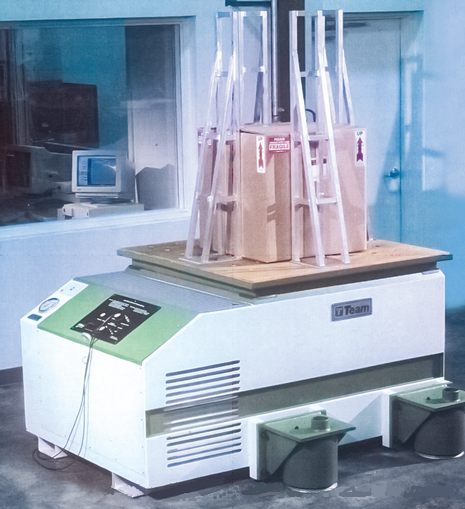

The LCS-48 is a compact, self-contained unit with a 1.2m (48") square vibration table. The system is exceptionally quiet and does not require any additional utilities, such as water for cooling, or external hydraulic supplies. The integral hydraulic supply is an efficient, air-cooled, variable volume hydraulic pump that allows the electric motor to work in exact proportion to the system needs, thereby reducing electrical consumption.

Team servo hydraulic vibration test systems offer versatile and cost effective testing solutions for the transportation and packaging industry. To meet the transportation and packaging tests identified in the ASTM, ISTA and IEC specifications, Team can offer either the LCS-48 Package Test System or custom designed solutions.

LCS-48是一个紧凑的独立式设备，带有1.2m（48"）方形振动台面。该系统**安静，不需要任何其他工具，例如冷却水或外部液压系统。液压供应是一种高效的风冷可变容量液压泵，它可使电动机按照系统需求精确地工作，从而减少了电力消耗。

Team伺服液压振动测试系统为运输和包装行业提供了多功能且具有成本效益的测试解决方案。为了满足ASTM，ISTA和IEC规范中确定的运输和包装测试，Team可以提供LCS-48包装测试系统或定制设计的解决方案。

Features 特征

• Completely Self Contained Unit 完全独立的单位

• Air Cooled- Hydraulic Pump Motor, no water required 风冷-液压泵马达，无需水

• Quiet - 72 dB at 6 feet (2 meters) 安静-6英尺（2米）时为72 dB

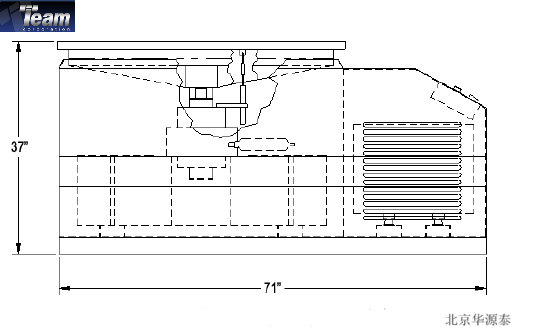

• Compact - 48” x 72” (1.2m x 1.8m) footprint 　紧凑-尺寸为48英寸x 72英寸（1.2mx 1.8m）

• Large Table Working Area　48” x 48” (1.2m x 1.2m) 大台面工作区

• High Performance - 2” (50mm) stroke and up to 200 Hz frequency range　高性能-2英寸（50毫米）行程，*高200 Hz频率范围

• Sine and Random Testing　正弦和随机测试

• ASTM, ISTA and IEC Capability ASTM，ISTA和IEC能力

Applications 应用领域

• Transporation and package testing运输和包装测试

•
