Overview 总览

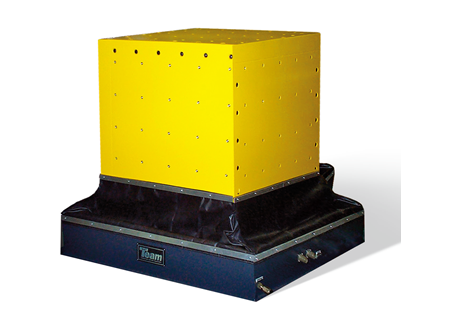

since 1994, Team Corporation has taken 6 Degree of Freedom testing capability to new levels. An advanced technology hydraulic test system that offers 6 Degrees of Control, the CUBE can accurately replicate virtually any vibration environment, including very high frequencies, with precise digital control. The CUBE simulates real world 6 Degree of Freedom vibration with complete, simultaneous control of the amplitude and phase of all 6 Degrees of Freedom.Offering simultaneous or sequential excitation of test articles in Sine, Random and Time Wave Form Replication, the CUBE sets the standard for multi-axis vibration testing.

   自1994年以来，Team Corporation已将6自由度测试功能提高到了新的水平。先进的液压测试系统提供6个自由度的精确控制，CUBE可以通过精确的数字控制来精确复现几乎任何振动环境，包括**高的频率。CUBE通过完全同时控制所有6个自由度的幅度和相位来模拟真实世界的6个自由度振动。CUBE提供正弦波，随机波和时间波形复现，测试物品可以同时或顺序激励，CUBE设置了多轴振动测试的标准。

Features 特征

Force rating of 14,000 lbf. (62 kN) in each axis 额定力为14,000磅力，每个轴（62 kN）

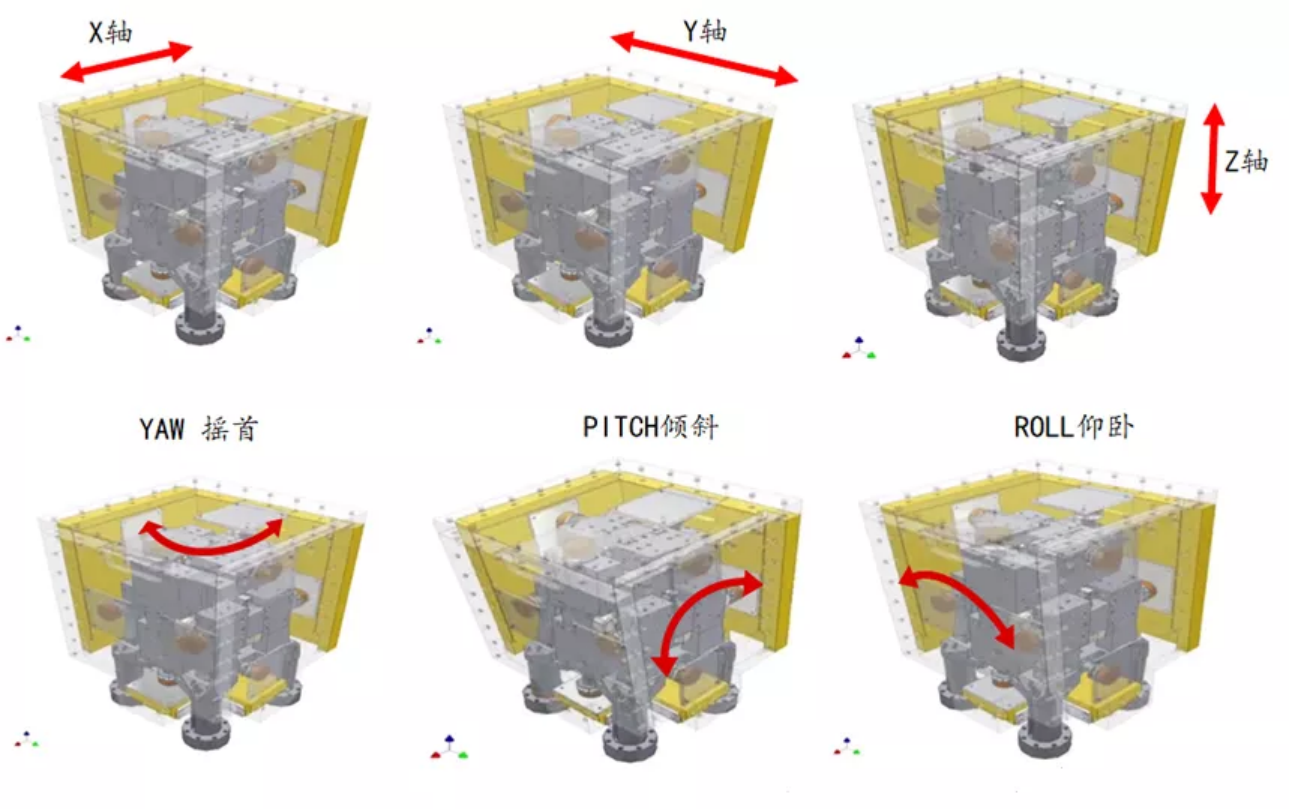

Six * * Integrated Shakers provide precise, simultaneous or sequential control of all 6 Degrees of Freedom to beyond 500 Hz.六个获得**的集成式振动台可在所有6个自由度提供精确同步或顺序控制，频率超过500Hz。

Excellent replication of measured data to higher frequencies than ever before　出色地将测量数据复现到比以往更高的频率

Standard 50mm displacement in X-Y-Z. Available 100mm vertical displacement. XYZ标准位移50mm。可选100mm垂直位移。

Hydrostatic bearings assure long life and low maintenance　静压轴承确保长寿命和低维护成本

Small 48 inch X 48 inch (1.2M x 1.2M) footprint　小尺寸48英寸X 48英寸（1.2M x 1.2M）占地面积

Five active mounting surfaces allow simultaneous unit testing　五个安装表面允许同时进行多单元测试

Available Head Expanders increase the mounting surface according to your test article requirements　可选的头部扩展台根据您的测试物品要求增加安装表面积

Available thermal barrier for use with environmental chamber　可用于三综合环境室的隔热垫

Applications　应用

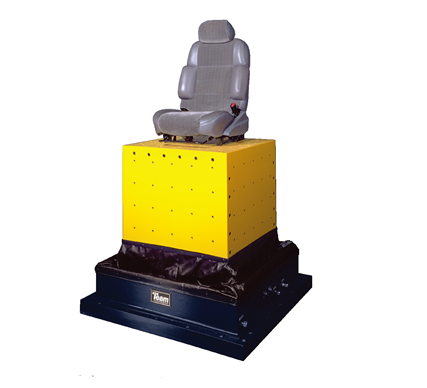

Automotive Component Testing 汽车零部件测试

Automotive Suspension Testing 汽车悬挂测试

Battery Testing 电池测试

Buzz, Squeak and Rattle Testing   嗡嗡声、吱吱声和嘎嘎声，异响测试

Avionics Testing 航天电子测试

Package Testing 包装测试

Military Transportation Canister Testing 军用运输罐测试

CUBE 应用案例演示：
